Alta Parking Lot Expansion

Welcome to Black Leaf Design.

We are a full-service design-build general contractor specializing in steel building projects from concept through completion. We believe strong communication creates successful projects and partnership, which is why this webpage serves as your dedicated project hub — providing clear visibility into design, budgeting, plans, schedules, and approvals for your entire project.

Project Details

Permit Number: Not assigned yet

Zoning: Commercial

Address: Alta Ski Area, Alta, UT 84092

General Contractor: Black Leaf Design LLC

President: Jared Grant

C: (517) 643-2100 E: jared@blackleafut.com

Goals

  1. Manage and facilitate the north side expansion of the Wildcat parking lot.

  2. Excavation and extraction of dirt from the lot. Trenches and hole for dropbox and wingwall.

  3. Installation of retaining wall, dropbox and wingwall.

  4. Level new parking area and backfill wall.

  5. Paving of new area.

Building code Standards

2021 International Building Code (IBC)

  1. 2021 International Residential Code (IRC)

  2. 2021 International Plumbing Code (IPC)

  3. 2021 International Mechanical Code (IMC)

  4. 2021 International Fuel Gas Code (IFGC)

  5. 2020 National Electrical Code (NEC — NFPA 70)

  6. International Energy Conservation Code (IECC):

    • 2015 IECC for residential (in many jurisdictions under MSD)

    • 2021 IECC for commercial construction

  7. 2021 International Existing Building Code (IEBC)


1. Project Overview

This plan outlines the proposed expansion and paving of an existing parking lot area at Alta Ski Area. The intent of the project is to improve parking capacity, durability, and drainage performance while maintaining compatibility with surrounding terrain and infrastructure.

The expanded parking area will be designed to safely manage surface runoff, control erosion, and ensure long-term structural stability in a mountain environment.

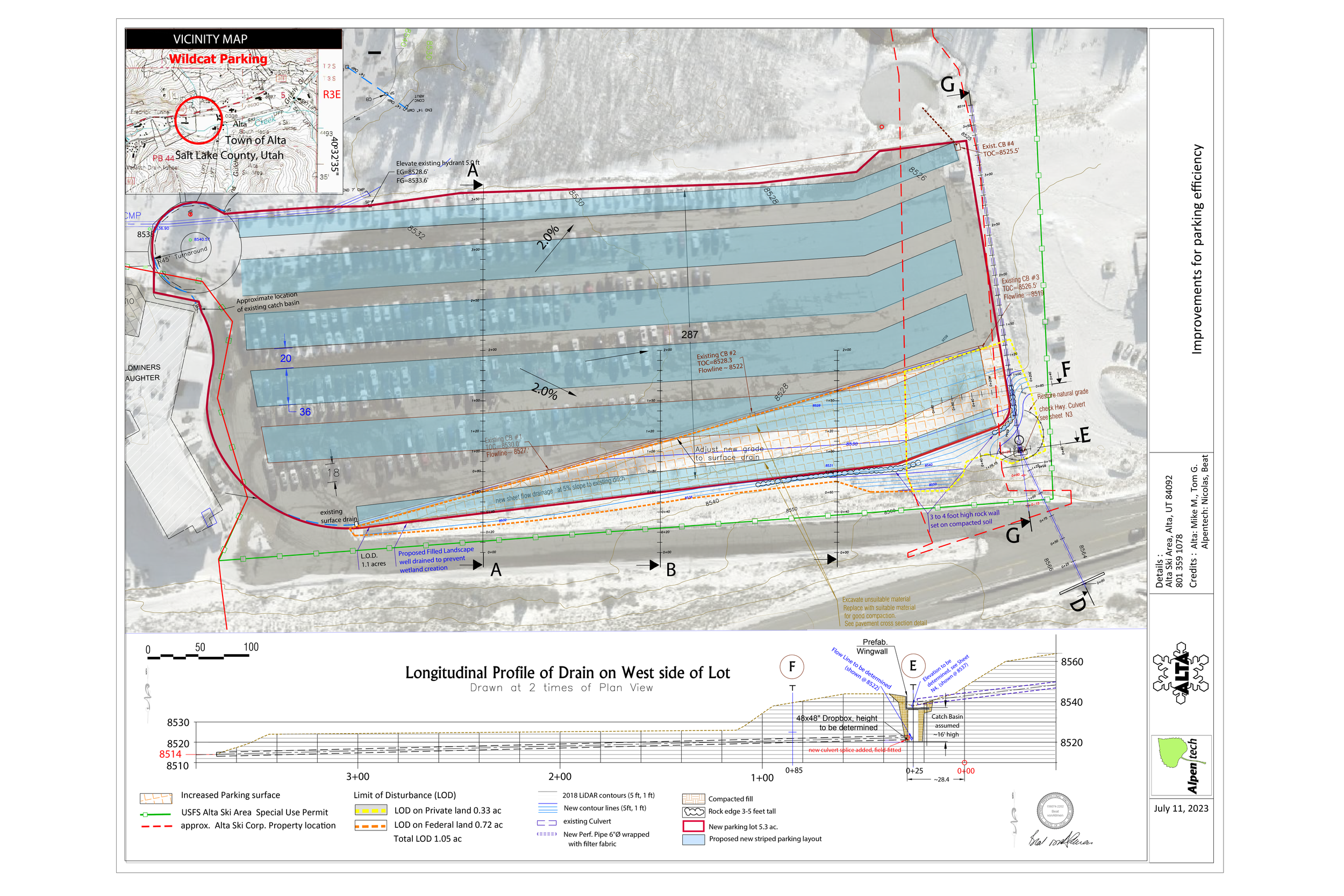

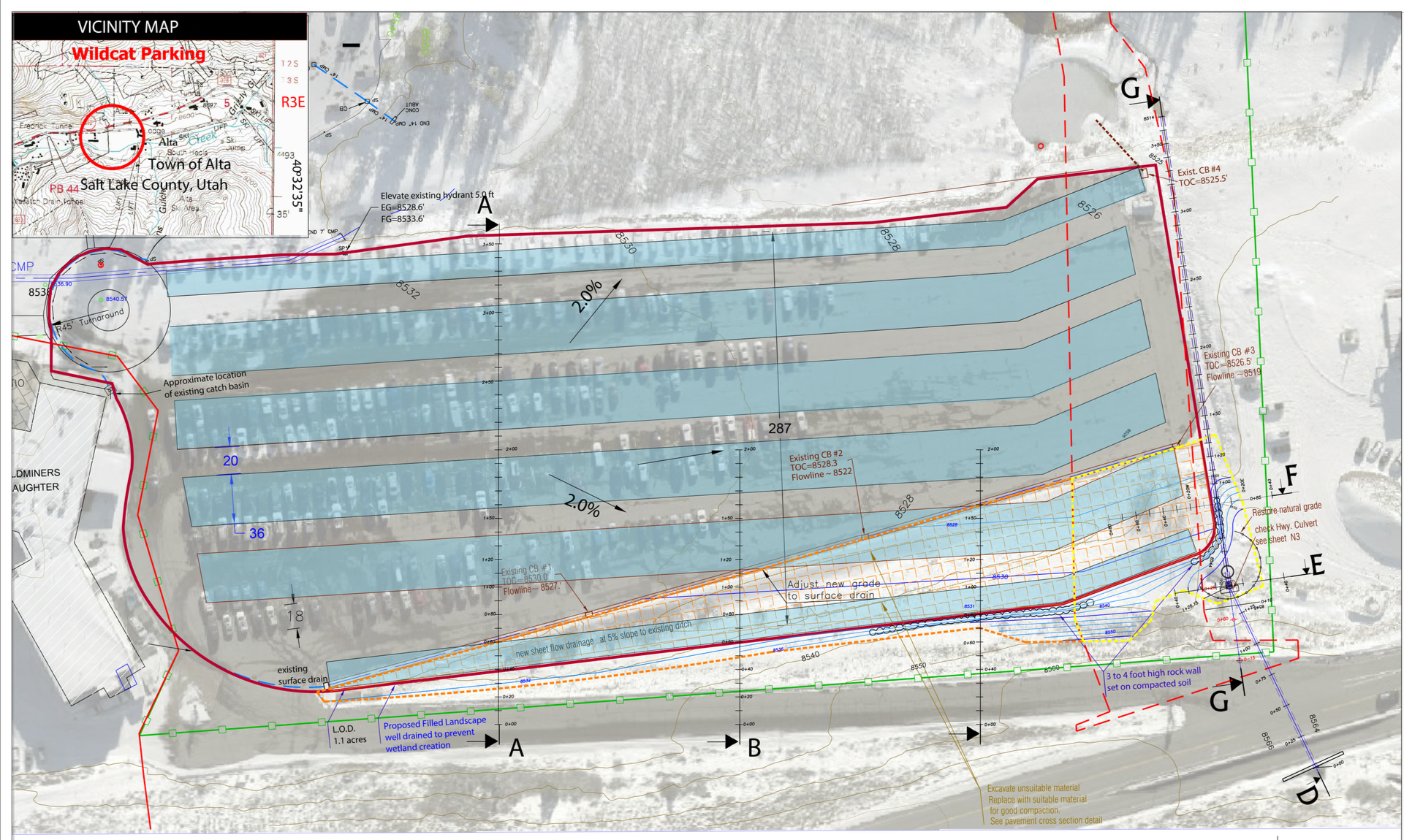

2. Grading & Drainage Plan

The expanded parking surface will be graded to maintain a consistent 2-degree slope across the paved area. This slope is designed to promote positive drainage, prevent ponding, and direct stormwater toward designated collection points.

Final grades will be tied into existing pavement and surrounding ground elevations to ensure smooth transitions and safe vehicle movement.

3. Retaining Wall - North Side

A retaining wall will be constructed along the north side of the expanded parking area to retain adjacent grades and maximize usable paved space. The wall will be designed to accommodate site-specific soil conditions and loading requirements.

The retaining wall will also assist in controlling runoff and preventing slope instability in this area.

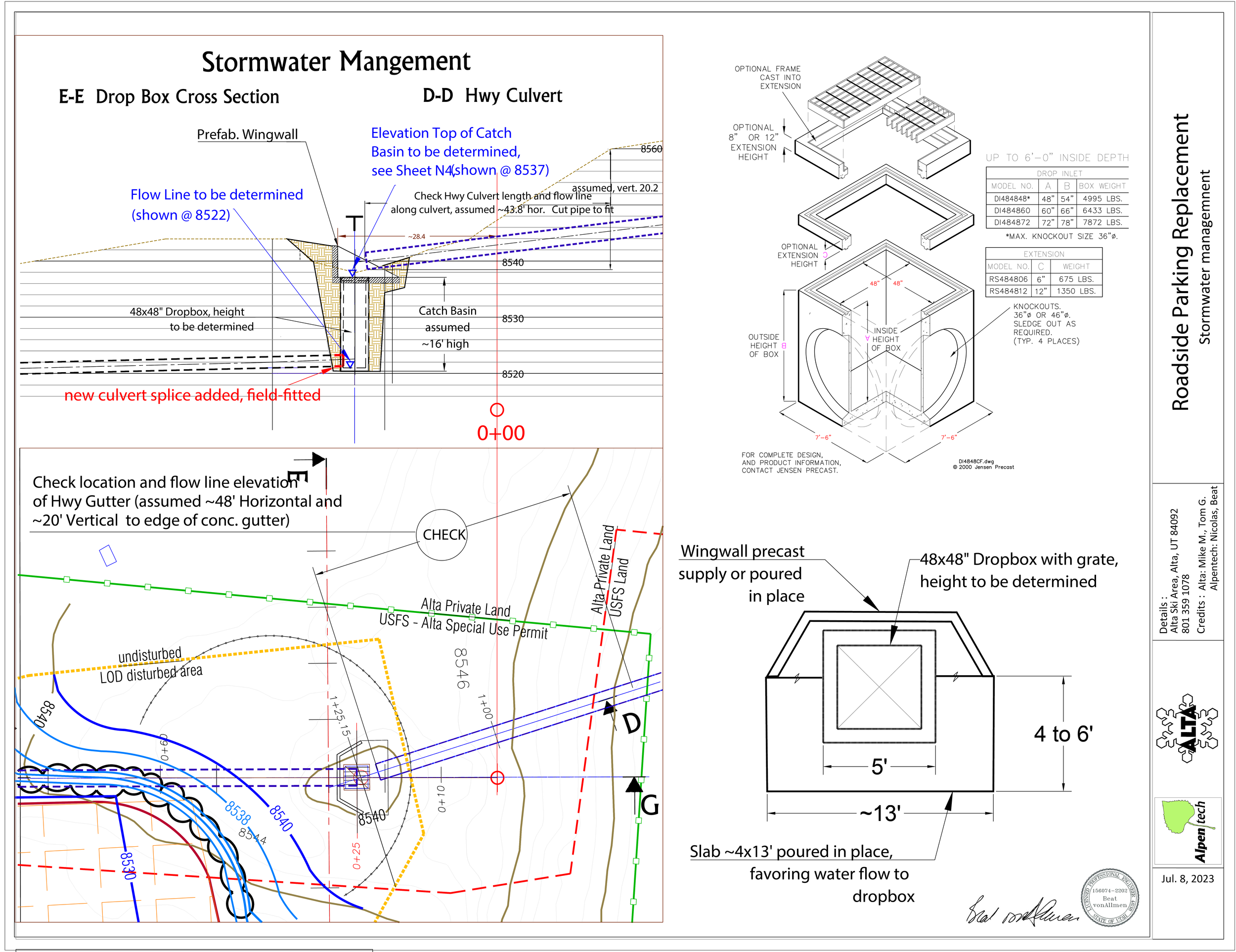

4. Stormwater Management

A complete stormwater management system is included as part of this plan. Surface runoff from the paved area will be conveyed to a precast concrete drop box, designed to collect and direct flows efficiently.

A precast wingwall will be installed at the outlet to provide structural protection, guide flow, and reduce erosion at discharge points. The system is designed to handle anticipated storm events and comply with applicable local and site-specific requirements.

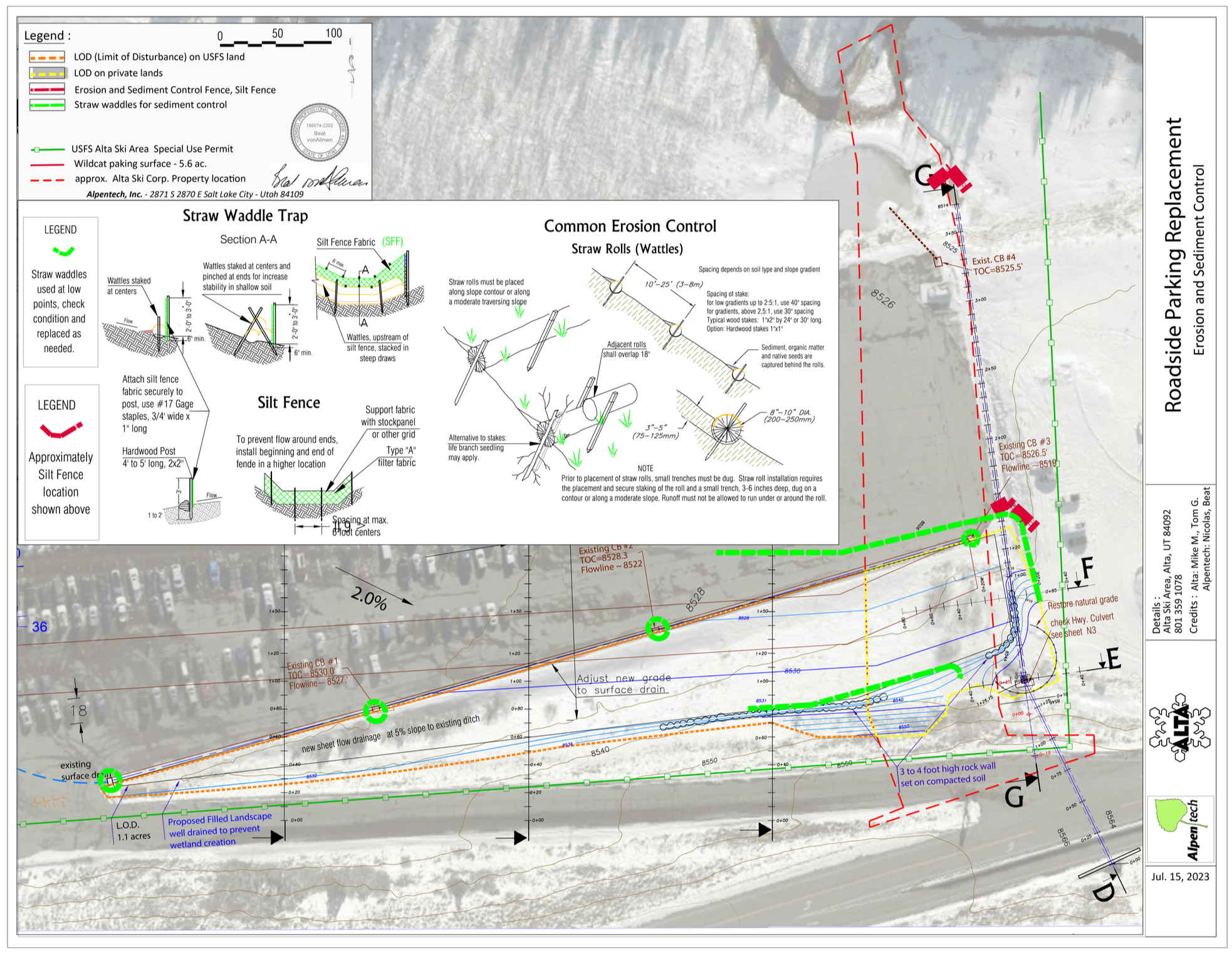

5. Erosion Control Measures

Erosion control measures will be implemented throughout construction and maintained until the site is fully stabilized. These measures may include, but are not limited to:

  • Silt fencing or equivalent perimeter controls

  • Stabilized construction access points

  • Temporary surface protection during grading

  • Final stabilization following paving and wall installation

All erosion control practices will be installed in accordance with standard best management practices (BMPs) for mountain and high-runoff environments.

Plans

Rough Project Schedule & Timeline (3 Months)

Month 1: Preconstruction, Earthwork & Wall Prep

Weeks 1–2

  • Mobilization and site setup

  • Install erosion control measures (silt fence, inlet protection, stabilized access)

  • Survey staking and layout

  • Initial clearing, stripping, and excavation

  • Rough grading of the expanded parking area

  • Stockpiling and export of excess material

Weeks 3–4

  • Continued excavation and subgrade preparation

  • Foundation preparation for north-side retaining wall

  • Begin retaining wall install

  • Stockpiling and export of excess material

Milestones:
- Erosion control in place
- Subgrade established
- Retaining wall construction underway

Month 2: Structural Work & Drainage Infrastructure

Weeks 5–6

  • Complete retaining wall construction

  • Install stormwater infrastructure

    • Precast drop box preparation

    • Precast wingwall

  • Connect stormwater system to existing drainage

Weeks 7–8

  • Backfill and compact behind retaining wall

  • Fine grading to establish 2-degree slope for drainage

  • Proof rolling and subgrade corrections as needed

Milestones:
- Retaining wall complete
- Stormwater system installed
- Final grades established

Month 3: Paving, Finishing & Stabilization

Weeks 9–10

Aggregate base placement and compaction

  • Final surface grading

  • Paving operations

Weeks 11–12

  • Final erosion control stabilization

  • Site cleanup and demobilization

  • Final inspection and punch list completion

Milestones:
- Paving complete
- Erosion control stabilized
- Project substantially complete
